ผู้นำระบบหล่อลื่นอัตโนมัติจากจุดศูนย์กลาง Central Lubrication System จากประเทศญี่ปุ่น เครื่องจักร CNC หรือ Machining Center และเครื่องจักรทั่วไปจะมีระบบหล่อลื่นแบบอัตโนมัติอยู่ภายในเครื่องจักร เป็นระบบที่ดีมากสามารถช่วยให้ผู้ดูแลไม่ต้องกังวลในการเติมสารหล่อลื่นของเครื่องจักร และคอยสัญญาณเตือนของระบบเมื่อสารหล่อลื่นลดลง ทำให้ลดปัญหาการเสียหายของเครื่องจักร และลดเวลาการปฎิบัติงานได้ และยังรับออกแบบ, ติดตั้ง และดูแลระบบ โดยช่างผู้ชำนาญงาน

LA Hand Pump

  • ※ Resistance type manually operated pump
  • ※ 3 types available, dispensing either 3c㎥/stroke, 6c㎥/stroke or 8cm3/stroke
  • ※ Direct pressure type lever pump

The LA model is a simple to use hand pump. Distribution of oil is induced by the direct force created upon pulling the lever.

3 types of LA hand pumps are available, dispensing either 3c㎥/stroke, 6c㎥/stroke or 8cm3/stroke, and are ideal for use in conjunction with Dester Valves (Resistance type distribution junctions).

2 types of LA8D models are available. The LA8DR and the LA8DL have distribution ports on opposing sides, broadening installation capabilities.

ต้องการข้อมูลเพิ่มเติม

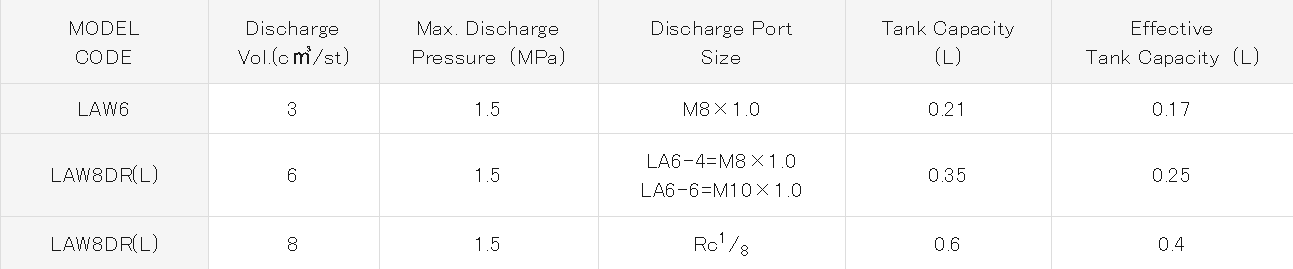

Specifications

※ 2 types of LA6 are available. (LA6-4 for Ø4 piping and LA6-6 for Ø6 piping).
※ types of LA8D are available. (LA8DR with discharge port on the right and LA8DL with discharge port on the left).
※ The LA3 possesses a plastic tank, while the LA6 and LA8D are equipped with die-cast aluminum tanks.

Form code

Drawing

SHOWA

Lubrication is essential to maintain the performance, accuracy, and best operating condition of machinery. Our centralized lubrication system can feed lubricant to multiple points from a single source.
