MLA Continuous Motor Pump

  • Gear pumps for continuous oil distribution systems
  • High levels of performance, safety and durability
  • Various types and specifications available to meet a wide variety of needs



The MLA pumps are designed for continuous / circulating oil distribution in resistance type systems, which have the added benefit of a cooling effect.
The compact automatic gear pump, featuring a relief valve, achieves high levels of performance, durability and safety.
10 flow-rate models (0.06L/min~10L/min) are available, enabling the MLA series to cover a very broad flow-rate spectrum.

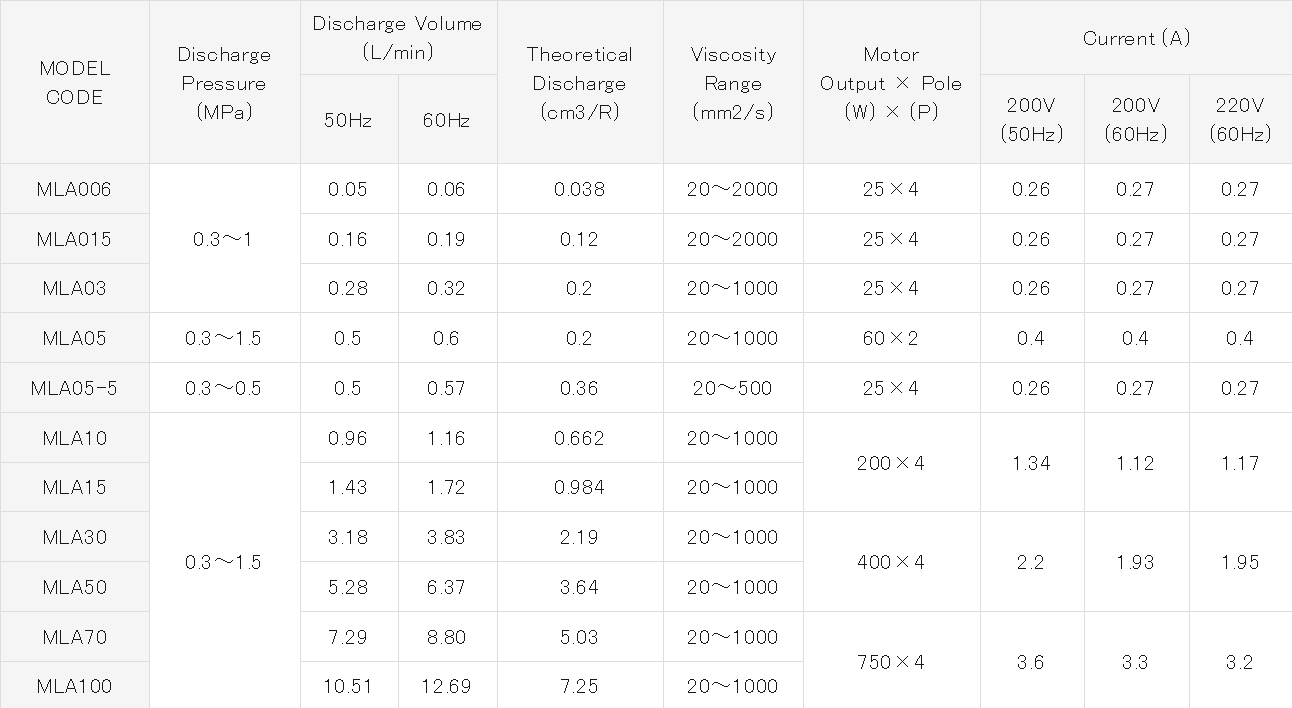

Specifications

MODEL
CODE
Discharge
Pressure
(MPa)
Discharge Volume
(L/min)
Theoretical
Discharge
(cm3/R)
Viscosity
Range
(mm2/s)
Motor
Output × Pole
(W) × (P)
Current (A)
50Hz 60Hz 200V
(50Hz)
200V
(60Hz)
220V
(60Hz)
MLA006 0.3~1 0.05 0.06 0.038 20~2000 25×4 0.26 0.27 0.27
MLA015 0.16 0.19 0.12 20~2000 25×4 0.26 0.27 0.27
MLA03 0.28 0.32 0.2 20~1000 25×4 0.26 0.27 0.27
MLA05 0.3~1.5 0.5 0.6 0.2 20~1000 60×2 0.4 0.4 0.4
MLA05-5 0.3~0.5 0.5 0.57 0.36 20~500 25×4 0.26 0.27 0.27
MLA10 0.3~1.5 0.96 1.16 0.662 20~1000 200×4 1.34 1.12 1.17
MLA15 1.43 1.72 0.984 20~1000
MLA30 3.18 3.83 2.19 20~1000 400×4 2.2 1.93 1.95
MLA50 5.28 6.37 3.64 20~1000
MLA70 7.29 8.80 5.03 20~1000 750×4 3.6 3.3 3.2
MLA100 10.51 12.69 7.25 20~1000

※The  25W  motors  can  operate  using  200,  220,  230Volts
(50Hz – 0.26A) or 200, 220, 230, 240Volts (60Hz – 0.27A).

※3 phase 200V 50Hz, 200V 60Hz and 220V 60Hz are the standard.    Different power specifications also available.

※Class E insulation

※Ensure the motor rotates in the correct direction.

※Current (A) values conform to NIDEC (200W+ motors).

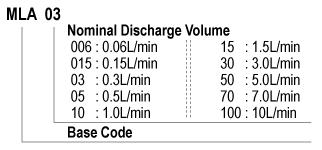

Form code

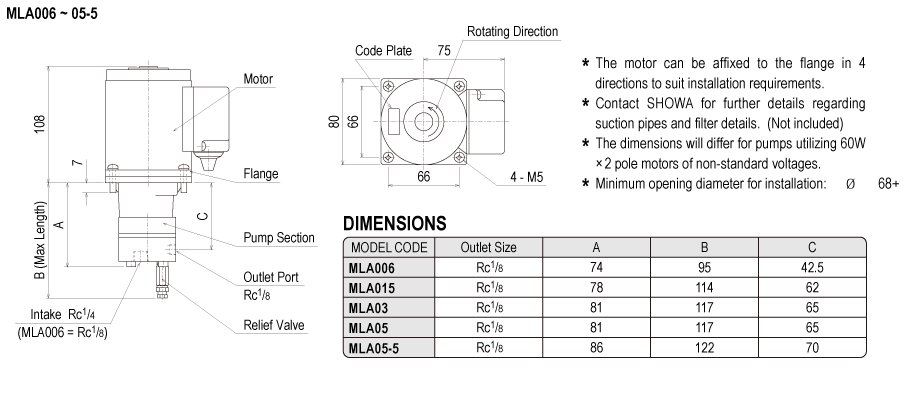

Drawing
