MY6 Accumulator Pump |
|
- Accumulator pump dispensing an adjustable volume of oil up to 6c㎥ per cycle
- Possesses an IC timer (control board) for intermittent lubrication (adjustable)
- 3 types of tanks and the inclusion of a float switch is selectable
Utilizing an IC timer, the MY6 can be set to discharge oil from a range of selectable interval times. Possessing an “adjustment nut”, the discharge volume per cycle can be set between 1~6c㎥.
The maximum discharge pressure for any discharge volume setting is 0.5MPa.
The MY6 also possesses an “Instant Button”, enabling immediate discharge of oil when required. |
|
Specifications |
MODEL
CODE |
Discharge
Pressure
(MPa) |
Discharge
Volume
(c㎥/cy) |
Intermittence Times
Selectable (mins) |
Outlet
Port Size |
Tank
Type &Capacity |
Effective
Tank Cap.
(L) |
Temp.
Range(℃) |
Viscosity
Range
(m㎡/s) |
× 1 Setting |
× 10 Setting |
MY60 |
0.5
Max |
1~6
Adjustable |
2, 4, 6, 8,
10, 12, 14,
16, 18 |
20, 40, 60,
80, 100, 120,
140, 160, 180 |
2 – Rc1/8
(One on each side) |
2L Plast. |
1.3 |
-10~+40 |
50~800 |
MY61 |
2L Alumi. |
1.3 |
MY62 |
4L Plast. |
2.9 |

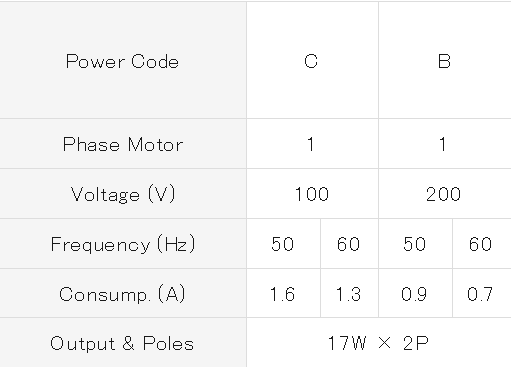

POWER SPECIFICATION
Power Code |
C |
B |
Phase Motor |
1 |
1 |
Voltage (V) |
100 |
200 |
Frequency (Hz) |
50 |
60 |
50 |
60 |
Consump. (A) |
1.6 |
1.3 |
0.9 |
0.7 |
Output & Poles |
17W × 2P |
|
Form code |
|
Drawing |
|
|
|
|
|
|
|
|
|
